GEAR HOBBING MACHINE HW110

■ Conversational input interface, easy to operate.

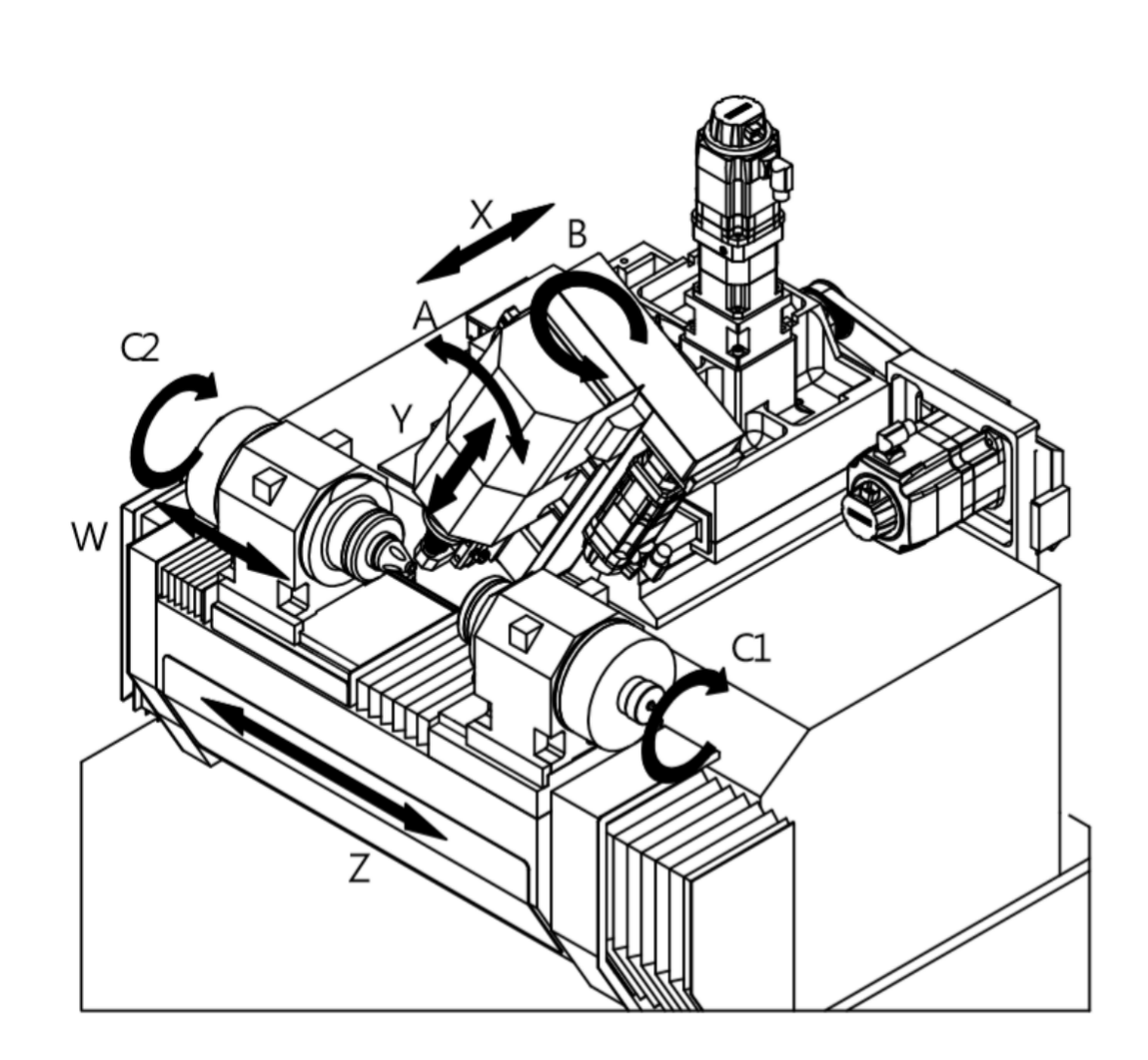

■ 8-axis full CNC design, high processing efficiency.

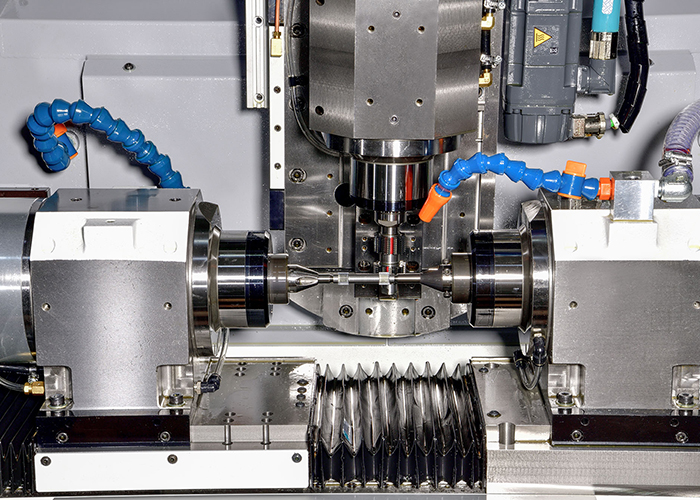

■ Dual hob structure, capable of completely removing residual burrs after gear hobbing.
■ Optional automatic feeding mechanism, enabling unmanned production.

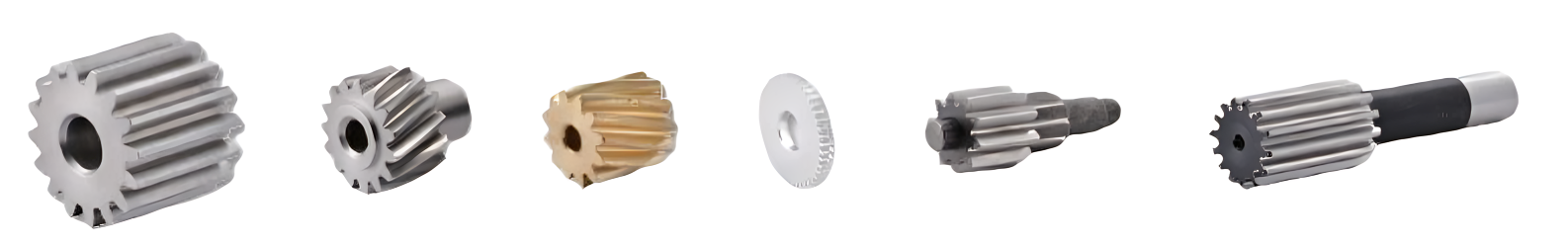

■ Capable of processing: spur gears, helical gears.

Workpiece
Item	Specification
Max. gear outer diameter	60 mm
Max. module	1.5 M
Hob
Max. hob size	Φ38 x L50 mm
spindle
Max. speed	10,000 rpm
Travel & Feed
X-axis radial travel	80 mm
Z-axis axial travel	90 mm
Z2 tailstock travel	110 mm
Hob shifting travel	70 mm
A-axis swivel angle	±30°
C-axis Max. speed	6,000 rpm
Others
Power requirement	20 KVA
Air pressure	4 bar
Machine dimensions (LxWxH)	1950 x 1250 x 2000 mm
Machine weight	2500 kg
