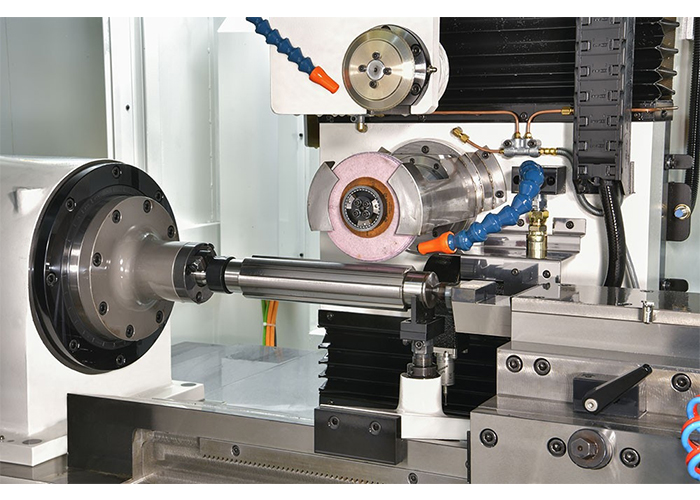

CNC EXTERNAL SPLINE GRINDING MACHINE EG1260

■ Equipped with Interactive HMI for upgraded performance and user-friendly operations.
■ Quick dressing process realized by moveable rotary dressing device.
■ DD motor of C-axis with zero-backspace lash.
■ High precision applied to detect workpiece automatically.

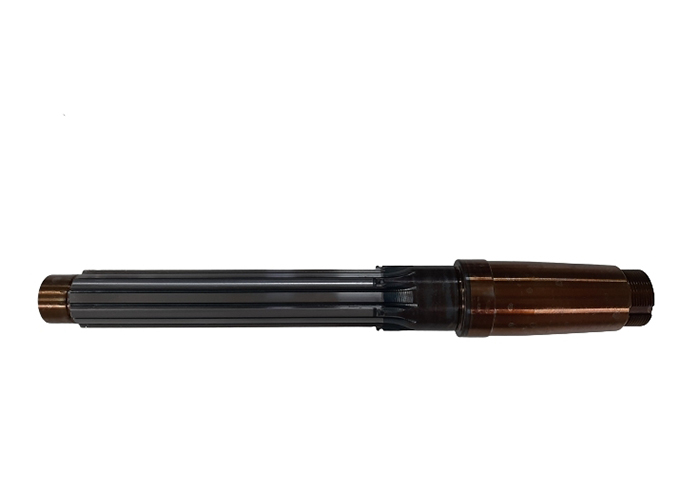

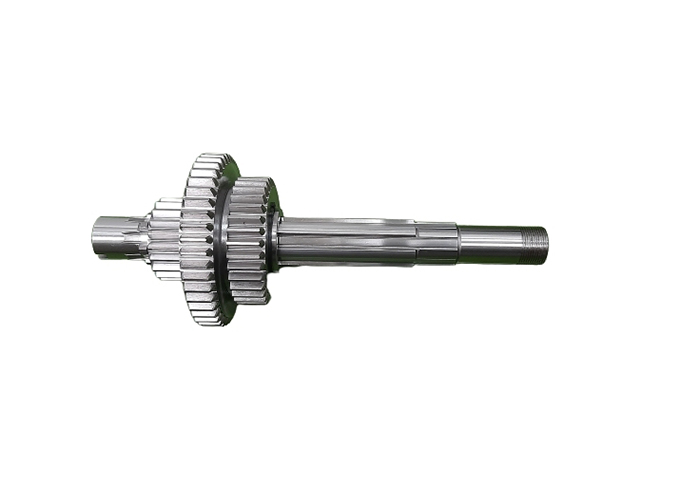

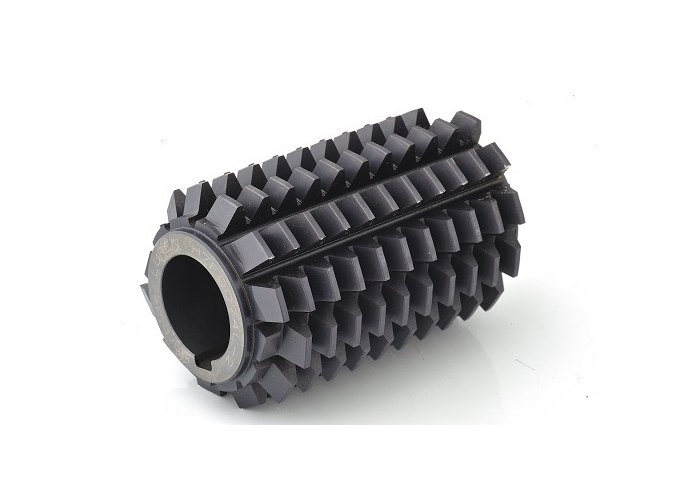

Workpiece
Item		Specification
Min. spline outer diameter		Φ20 mm
Max. spline outer diameter		Φ120 mm
spline width range		4~20 mm
Number of splines		1~99

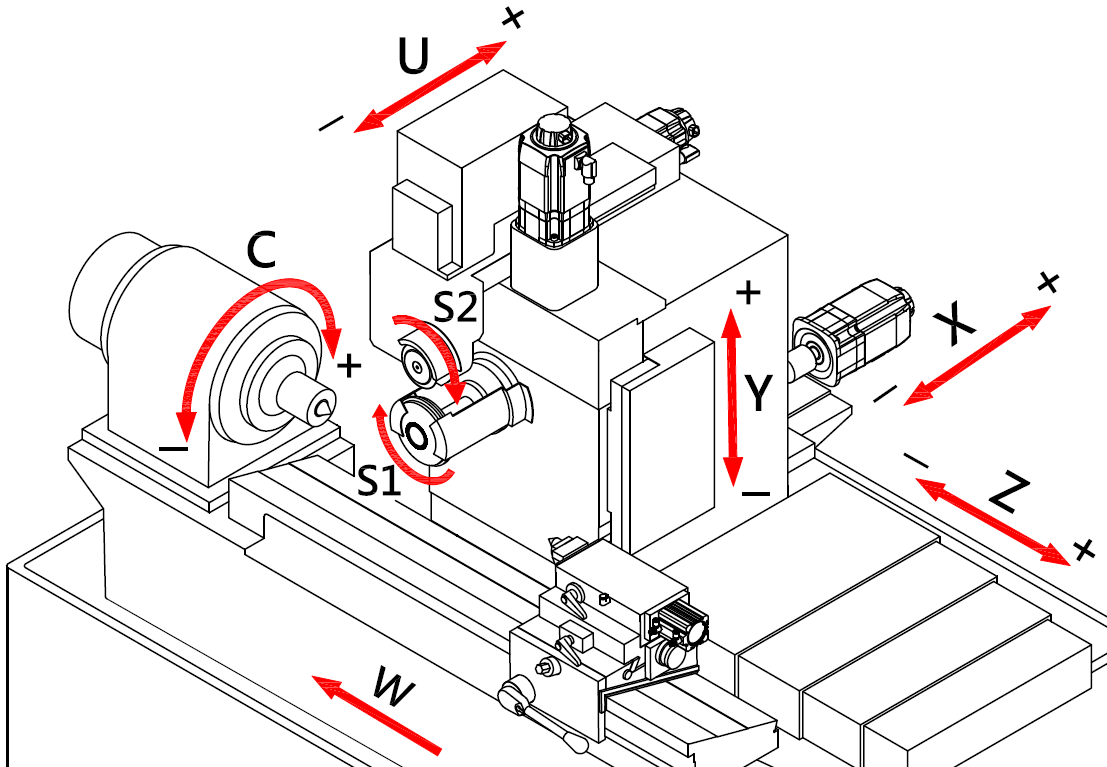

Travel
X-axis travel		70 mm
Y-axis travel		150 mm
U-axis travel		40 mm
Z-axis travel		600 mm
C-axis torque (DD motor)		500 N.m
Center distance		800 mm
Spindle
Spindle power		7.5 kW
Max. speed		10,000 rpm
Others
Air consumption		30 L/min
Air pressure		0.5 Mpa
Machine dimensions (LxWxH)		2200 x 1650 x 2000 mm
Machine weight		4500 kg
