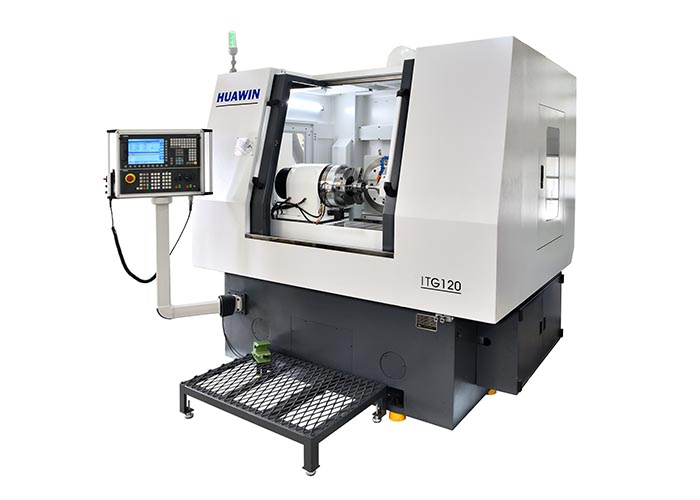

CNC INTERNAL THREAD GRINDING MACHINE ITG120

CNC INTERNAL THREAD GRINDING MACHINE ITG120

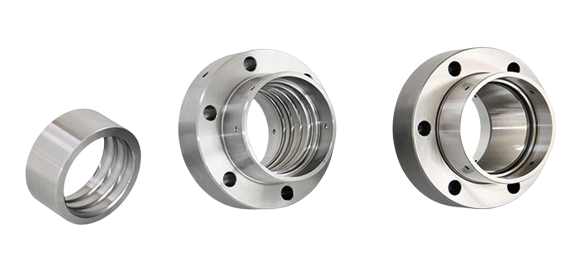

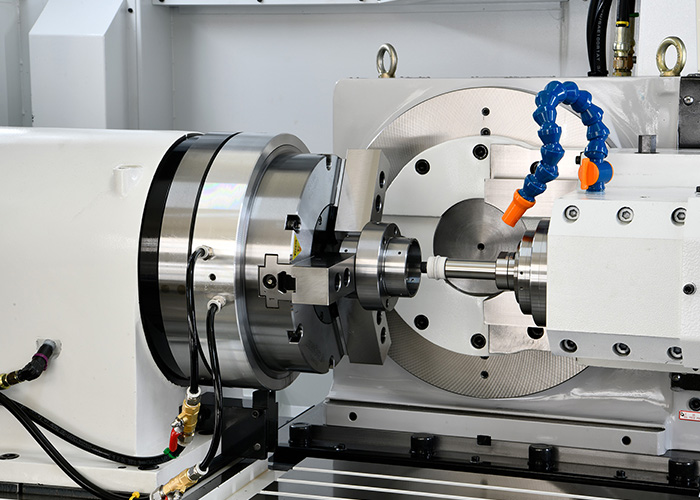

■ Internal thread and ballscrew nut can be ground.
■ Eguipped wuth HMI for upgraded prerformance and user-friendly operations.

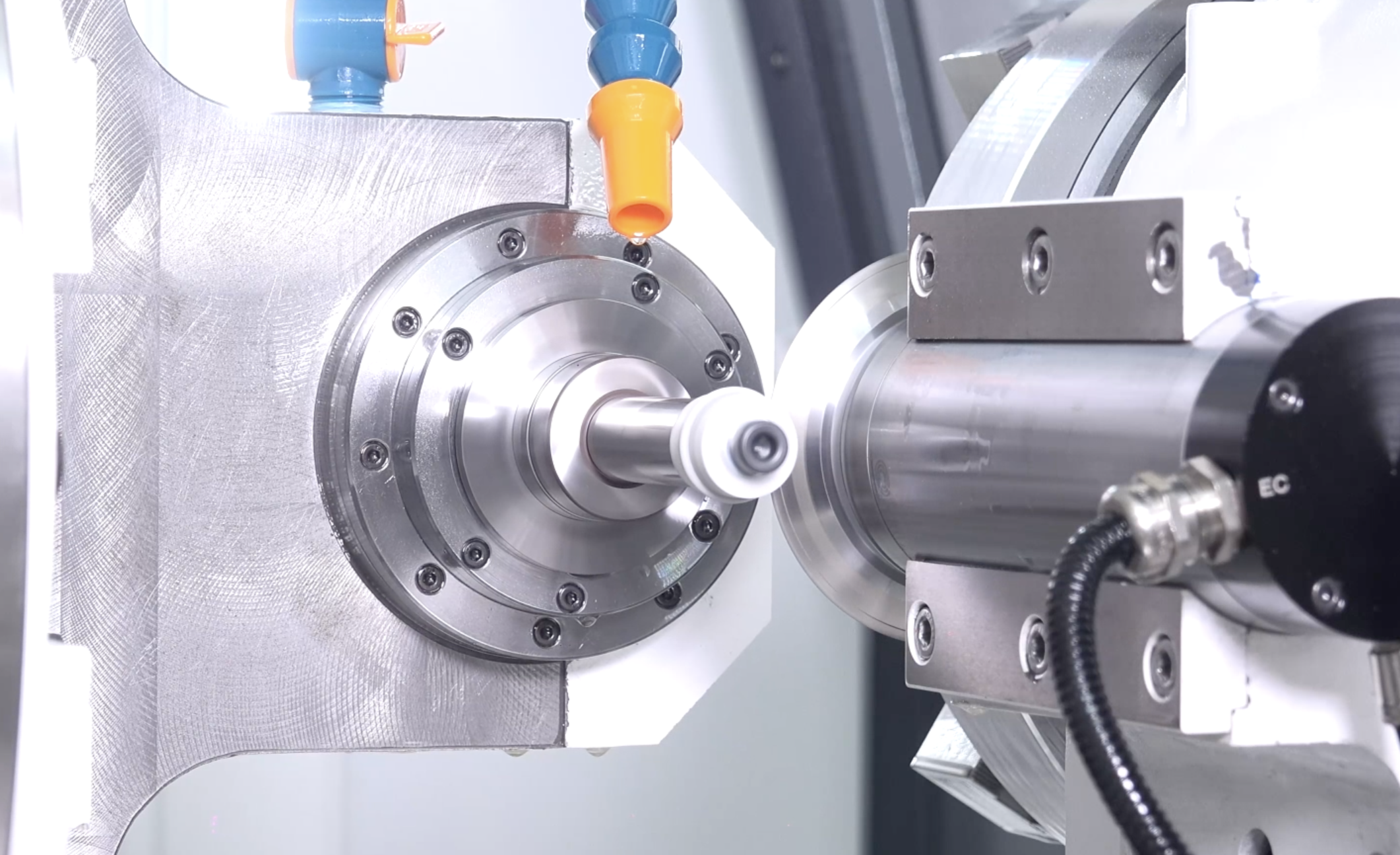

■ Precision profile using rotary dressey.
■ DD motor of c-axis with zero backlash.
■ Linear motor z-axis with zero backlash.

Workpiece
Item	Specification
Min. inner diameter	Φ20 mm
Max. inner diameter	Φ120 mm
Min. Pitch	1
Max. swing diameter	Φ200 mm

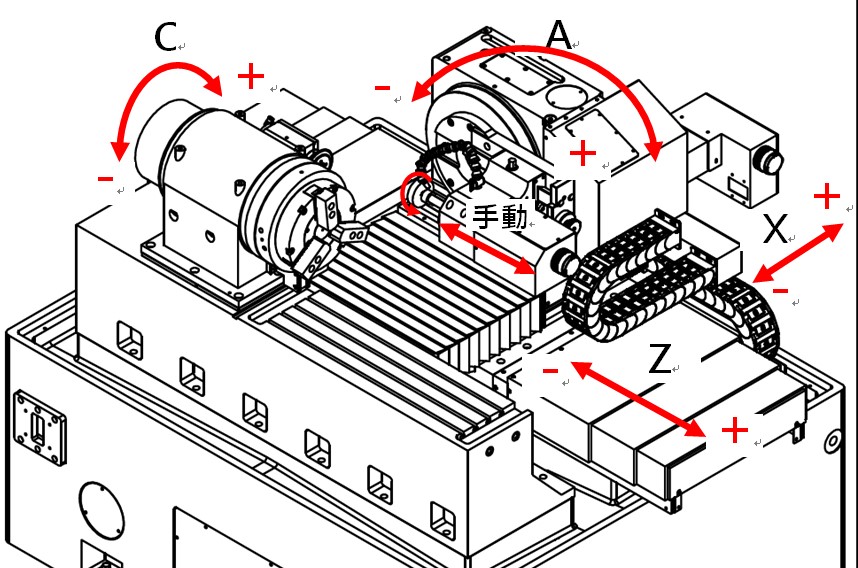

Travel
X-axis travel	150 mm
Z-axis travel	450 mm
C-axis travel	±360°
A-axis swing angle	±20°
C-axis torque	500 N.m
Spindle
power	10 kW
Grinding wheel diameter range	Φ15~Φ100 mm
Dresser Specification	Φ100×16W×R0.3
Others
Power requirement	<20 KVA
Air consumption	30 L/min
Air pressure	0.5 Mpa
Machine dimensions (LxWxH)	2200 x 1700 x 2000 mm
Machine weight	6500 kg
