High-Precision C-Z Axis Synchronization Technology:

The Ultimate Solution to Touch-Up Challenges in Worm Grinding



As modern precision manufacturing continues to demand higher levels of efficiency and accuracy, worm grinding has long faced a well-known challenge: the time-consuming and highly skill-dependent process of wheel touch-up setup after dressing.

To address this industry pain point, 「HUAWIN PRECISION CO., LTD.」 proudly introduces its High-Precision C-Z Axis Synchronization Technology. Utilizing advanced CNC control algorithms, this technology enables precise synchronized motion between the workpiece spindle rotation axis (C-axis) and the machine table longitudinal feed axis (Z-axis), transforming the wheel touch-up process into a faster, smarter, and more intuitive operation.



Key Advantages

■ Perfectly Solves the Wheel Touch-Up Challenge

As demonstrated in the latest video, the operator only needs to use the manual pulse generator (MPG) handwheel to guide the grinding wheel smoothly and accurately into the worm profile.

Watch the live machining demonstration here:

https://youtube.com/shorts/DScpMybilvA

The control system automatically maintains the synchronization between the C-axis and Z-axis in real time, allowing the wheel to follow the exact helix path of the workpiece. This significantly reduces setup time while ensuring highly accurate wheel positioning.



■ Reduces Operator Skill Requirements

With an intelligent human-machine interface (HMI) and real-time synchronized feedback, complex touch-up and alignment procedures are simplified into an intuitive and user-friendly process.

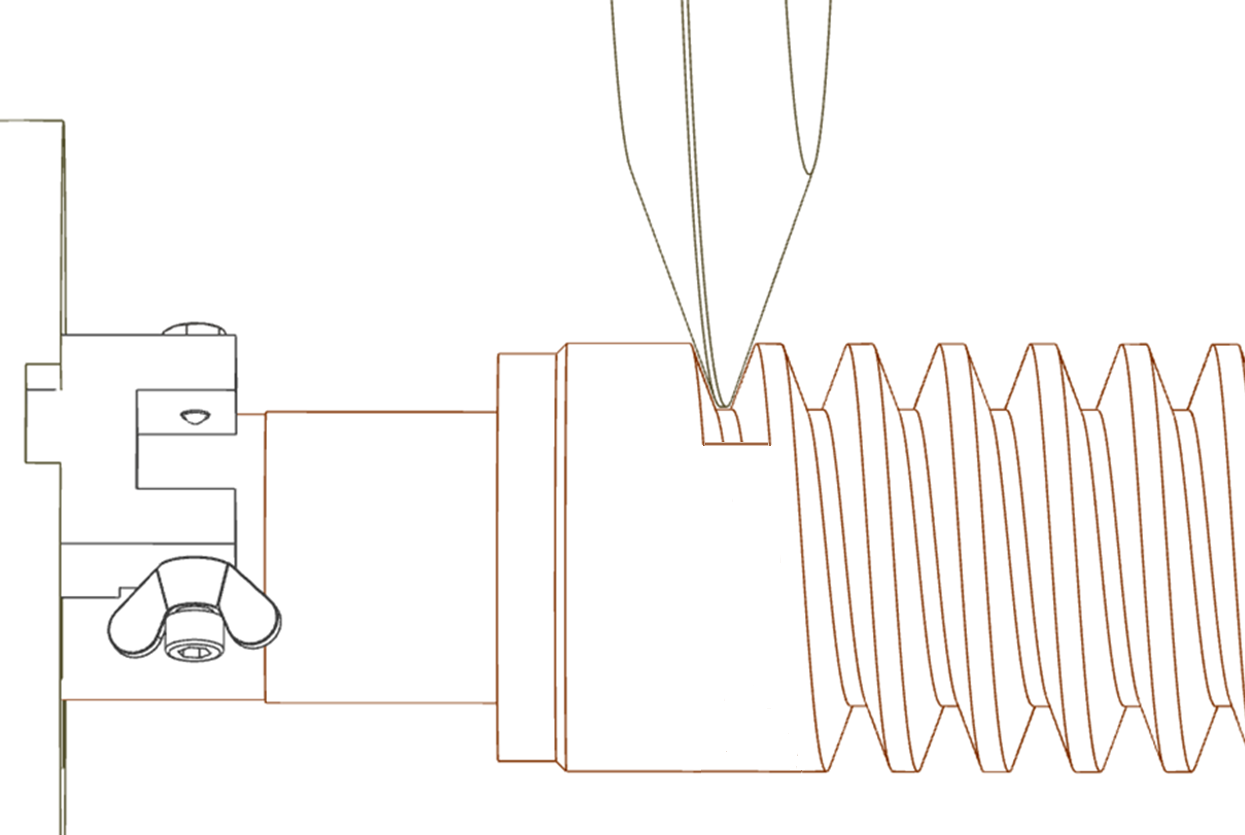

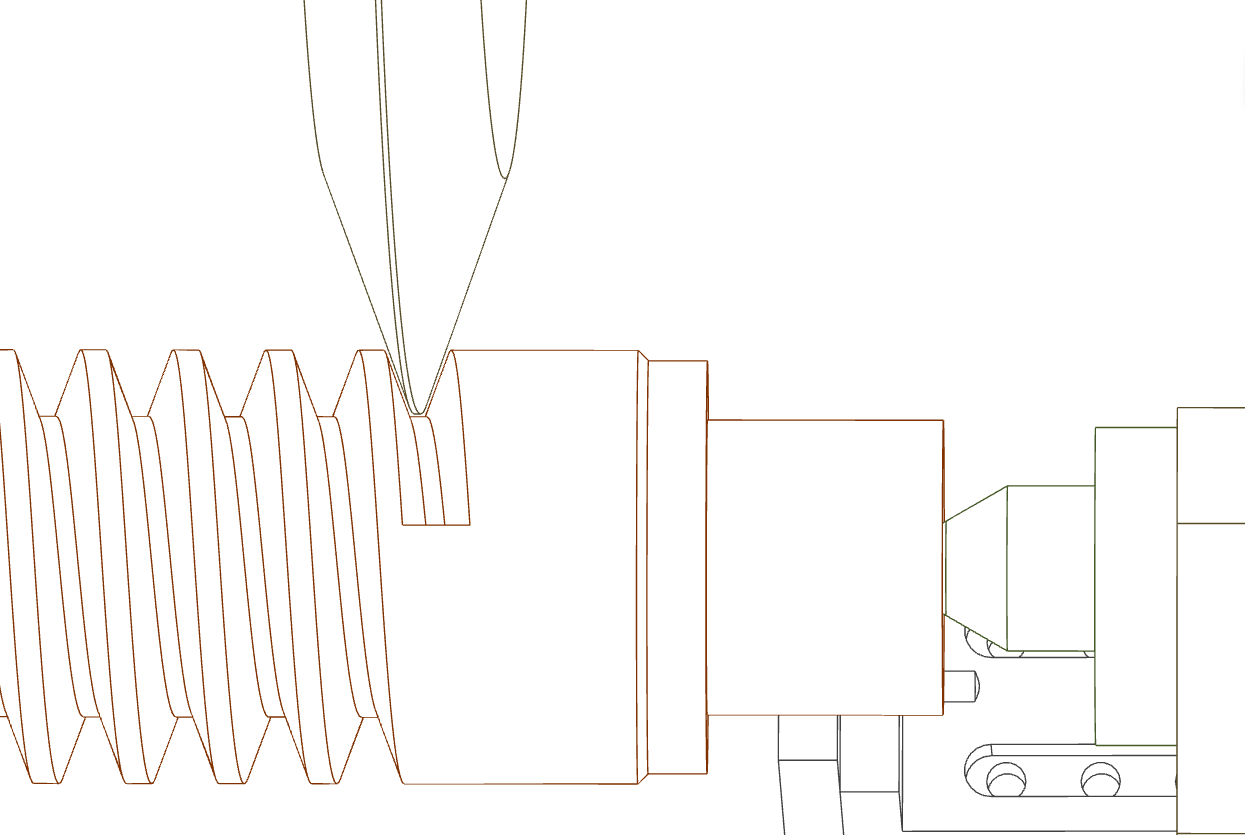

For machining workpieces without a 「no run-out worm gear」, the 「High-Precision C-Z Axis Synchronous Control」 function can be utilized to set the grinding wheel infeed position and wheel retraction (run-out) position, making machining condition setup more intuitive and easier.


Even operators with limited experience can perform stable tool alignment in a short time while minimizing human error.

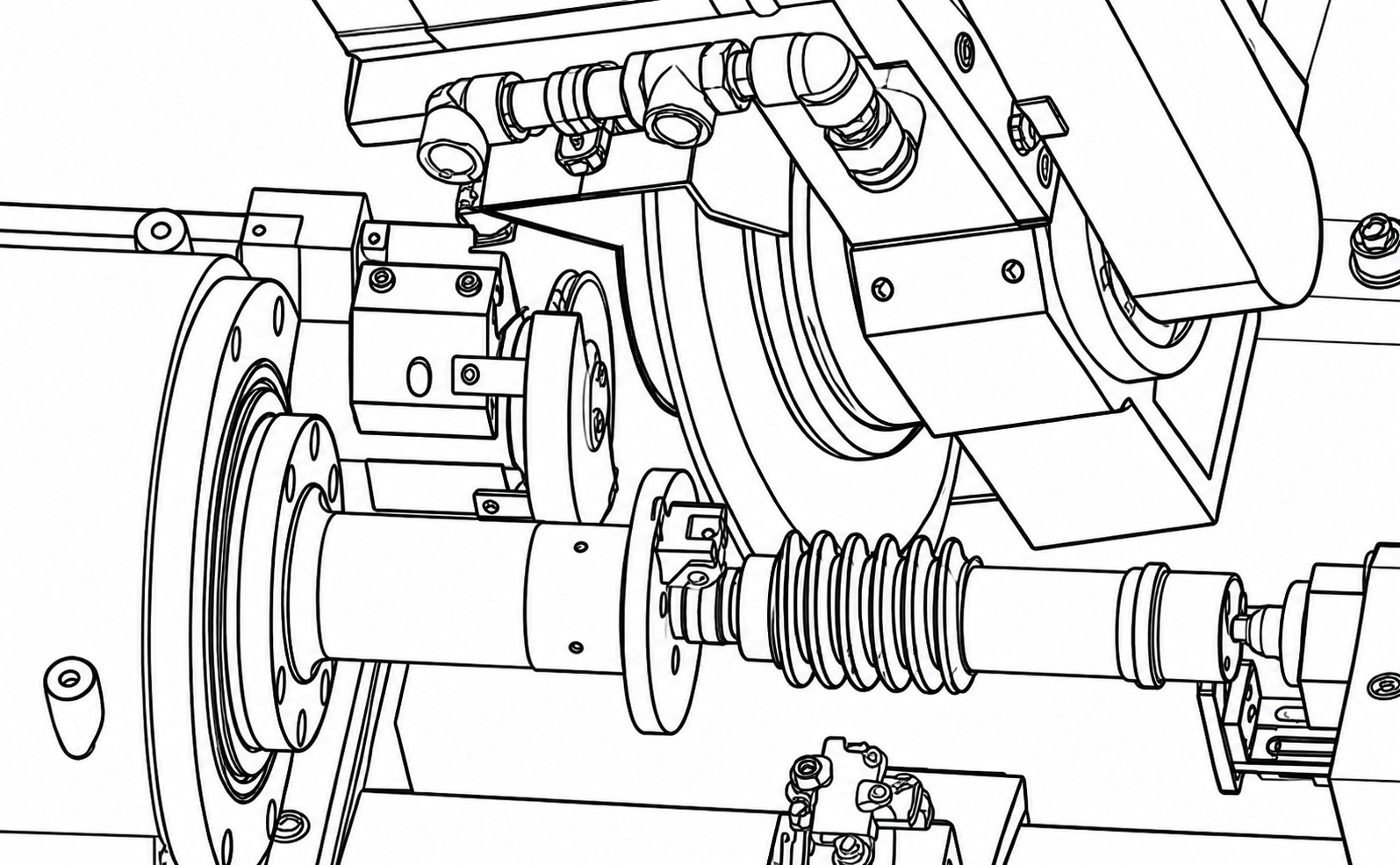

In addition, when a lead angle is set on the A-axis, if the workpiece lead angle exceeds 14°, interference may occur between the grinding wheel spindle mechanism and the dresser during machining. In such cases, the 「High-Precision C-Z Axis Synchronous Control」 function can also be used to simulate and verify the machining path and positions in advance, helping to avoid collision risks and ensuring safe machining and stable machine operation.


Whether you are grinding high-precision worm shafts or other complex threaded components, HUAWIN PRECISION’s C-Z Axis Synchronization Technology delivers greater process stability, improved accuracy, and significantly higher productivity for your manufacturing operations.
