WORM MILLING MACHINE WM1560

WORM MILLING MACHINE WM1560

■ Milling, chamfering, keyway and dual lead processing are completed at one time.
■ A full enclosed machine and cutting fluid backflow system facilitates daily maintenance and meet worming processing requirement.

Workpiece

Max.Module 6 mm
Max.Diameter Φ150 mm
Max.workpiece length 600 mm

Milling cutter

Max.cutter diameter Φ100, Φ135 mm
Cutter inside diameter Φ25.4 , Φ31.75 mm

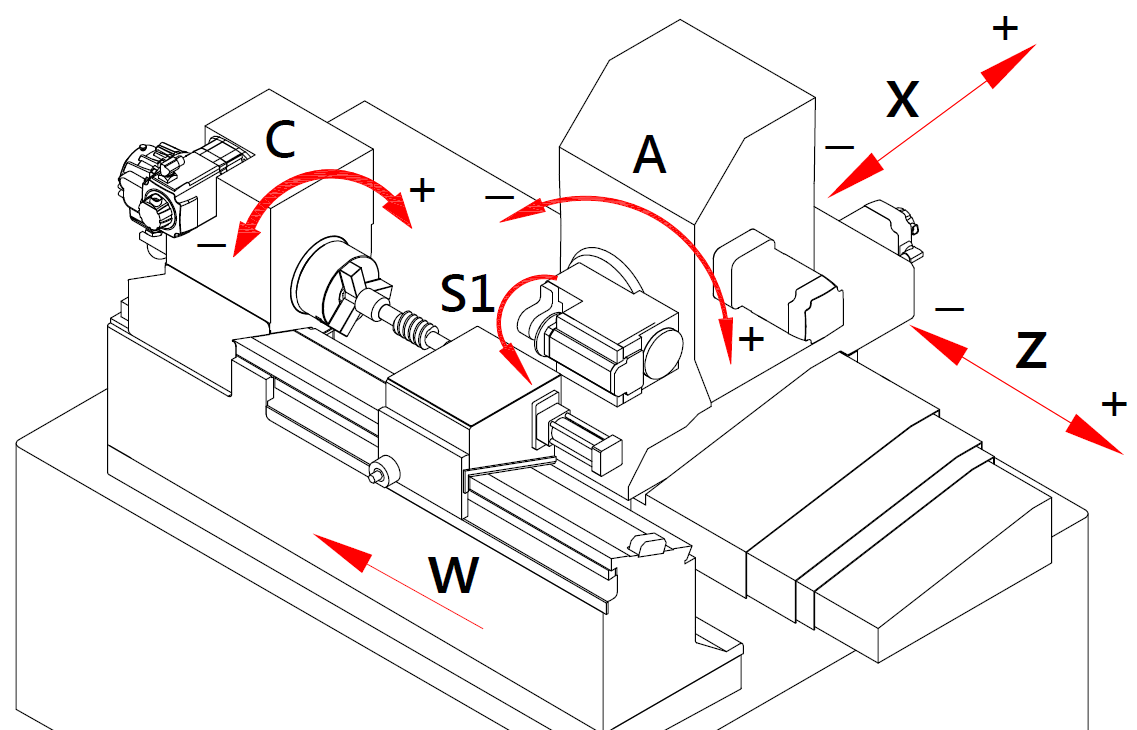

行程

X-axis travel 120 mm
Y-axis (option) travel 100mm
Z-axis travel 600
A-axis swivel angel -90 +35 degree
C-axis Rated torque 1200N.m
Hydraulic chuck 6"(3-Jaw)in
Max.speed 10rpm
S1-axis Power 7kW
Max. speed 360rpm
Power capacity <20KVA
Air pressure source Rated flow 30L/min
Pressure 0.5MPa
Machine dimension (L*W*H) 2500 x 1700 x 2000mm
Machine weight 5000kg
